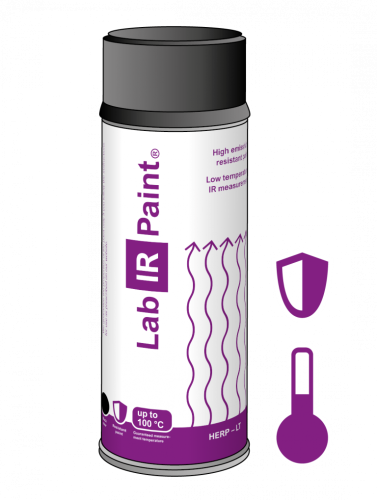

Thermographic paint for low temperature applications

star 1 star 2 star 3 star 4 star 5 (3)Rating value is 5 of 5

LabIR

Paint with high mechanical resistance suitable for standard measurements up to 100 °C. More

Product code: HERP-LT Shipping and Payment

13.99 € excl. VAT

In stock > 100 pcs
pcs
LabIR

Paint with high mechanical resistance suitable for standard measurements up to 100 °C. More

Product code: HERP-LT Shipping and Payment

Thermographic paints LabIR® with high emissivity allow accurate non-contact temperature measurement. Many materials (metal, glass, some plastics) with a glossy surface and high reflectivity, with unknown or low emissivity, cause inaccurate or impossible IR camera measurement. LabIR® Paints create a homogeneous layer with high emissivity for very precise measurements.

We are the only company on the market that guarantee emissivity of the paints for a given wavelength, emissivity dependence on the viewing angle and also other characteristics: mechanical resistance, optical impermeability, etc.

Elementary properties

  • paint with high emissivity

  • high mechanical resistance

  • almost opaque

  • for everyday use

  • suitable for uncooled infrared cameras

  • for temperatures up to 100°C

  • suitable for application in electrical equipment (very low conductivity)

We can guarantee all mentioned thermographic paint properties only if you follow the instructions for using the paint that are introduced below.

    Instructions for use

    1. Abrade the surface, clean it, dry it and get rid of grease. Cover other areas where spraying is not to be applied.
    2. Shake the canister for two minutes and make a test spray.
    3. Spray from a distance of 25-30 cm. Apply four thin layers, wait for a while and then apply four thin layers again.
    4. Spray at temperatures 15-25°C. Paint hardening occurs after two hours.
    5. After use, turn the canister upside down and clean the valve by pressing for a few seconds.

    Optical properties - emissivity

    •  use effective emissivity for non-contact measurement of surface temperature using an infrared camera
    • comply with effective emissivity for the correct angle of measurement
    • effective emissivity is valid for infrared cameras operating in the wavelength range 7.5 – 13 μm

    Documents to download:

    Chemical composition

    acetone, n-butyl acetate, butan-1-ol, propan-2-ol.

    Warning

    Extremely flammable aerosol. Product container is under pressure. When it is heated, it can explode. It causes serious eye irritation. It may cause drowsiness and dizziness. Repeated exposure may cause skin dryness or cracking. If medical help is needed, keep handy product container or label. Keep out of the reach of children. Before using. Be sure to read the information on the label. Do not breathe aerosol. Keep away from heat/sparks/open flames/ hot surfaces. No smoking. Pressure container: Do not pierce or burn even after use. Do not spray on an open flame or other ignition source. Protect from sunlight. Avoid temperatures exceeding 50 °C

    Recycling

    Contents/ Dispose of container in accordance with local/regional/national/international regulations.

    Special Transportation

    Please be aware that according to international transportation rules, paints have to be sent as dangerous goods (UN1950 AEROSOLS, flammable, CLASS 2.1, LTD QTY) so there is an extra shipping fee.

    Parameters
    Color Black
    Volume 400 ml
    Yield of paint: 0.5 m2
