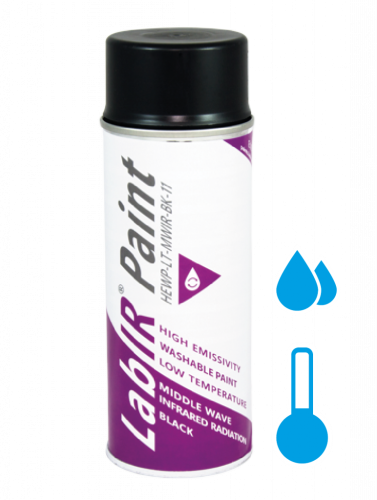

Washable thermographic paint for special applications


LabIR

Water washable paint suitable for measurements at room temperature, where a permanent application is undesirable. More

Product code: HEWP-LT Shipping and Payment

24.99 € excl. VAT

In stock > 100 pcs
pcs
LabIR

Water washable paint suitable for measurements at room temperature, where a permanent application is undesirable. More

Product code: HEWP-LT Shipping and Payment

Thermographic paints LabIR® with high emissivity allow accurate non-contact temperature measurement. Many materials (metal, glass, some plastics) with a glossy surface and high reflectivity, with unknown or low emissivity, cause inaccurate or impossible IR camera measurement. LabIR® Paints create a homogeneous layer with high emissivity for very precise measurements.

We are the only company on the market that guarantee emissivity of the paints for a given wavelength, emissivity dependence on the viewing angle and also other characteristics: mechanical resistance, optical impermeability, etc.

Elementary properties

  • paint with high emissivity
  • water washable
  • stable over time
  • almost opaque
  • suitable for uncooled infrared cameras and special applications
  • ecological
  • suitable for room temperature
  • application: turbine blades, sheet metal, glass, floors etc.

We can guarantee all mentioned thermographic paint properties only if you follow the instructions for using the paint introduced below.

Instructions for use

  1. Abrade the surface, clean it, dry it and get rid of grease. Cover other areas where spraying is not to be applied.
  2. Spray from a distance of 25-30 cm. Apply two thin layers.
  3. Spray from a distance of 25-30 cm. Apply two thin layers.
  4. Between the applications of individual layers, do not wait for curing.
  5. Spray at temperatures 15-25°C. Paint hardening occurs after two hours.
  6. After use, turn the container upside down and clean the valve by pressing for a few seconds.

Optical properties

  • almost opaque in the bands of commonly used infrared cameras
  • band normal emissivity 0.98 (for bands 3 to 5 μm)
  • band normal emissivity of 0.97 (for the band 7.5 - 13 μm)

Documents to download

Chemical composition

ethanol, diethyl ether, carbon black, titanium dioxide, xylene

Warning

Extremely flammable aerosol. Product container is under pressure. When it is heated, it can explode. It causes serious eye irritation. It may cause drowsiness and dizziness. Repeated exposure may cause skin dryness or cracking. If medical help is needed, keep handy product container or label. Keep out of the reach of children. Before using, be sure to read the information on the label. Do not breathe aerosol. Keep away from heat/sparks/open flames/hot surfaces. No smoking. Pressure container: Do not pierce or burn even after use. Do not spray on an open flame or other ignition source. Protect from sunlight. Avoid temperatures exceeding 50 °C.

Recycling

Contents / Dispose of container in accordance with local/regional/national/ international regulations.

Special Transportation

Please be aware that according to international transportation rules, paints have to be sent as dangerous goods (UN1950 AEROSOLS, flammable, CLASS 2.1, LTD QTY) so there is an extra shipping fee.

    Parameters
    Color Black
    Volume 400 ml
    Yield of paint: 0.5 m2
